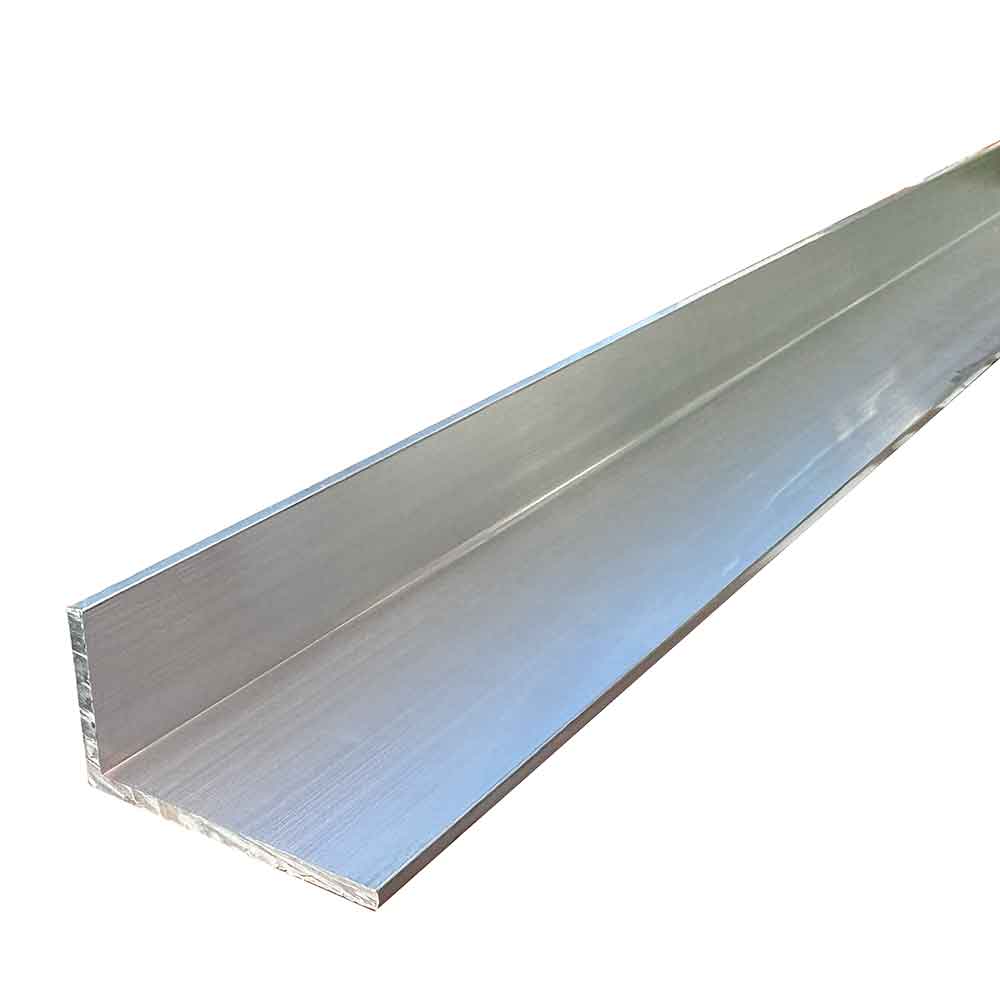

Description
| SKU | AL040AN_38x13x3/1000mm |
|---|---|
| Grade | 6063T6 |
| Weight - Kg/m | 0.42 |
| Measurement Type | Imperial |
| Angle Type | Unequal |
| Metric Size | 38.1 mm x 12.7 mm x 3.175 mm |
| Leg Height | 1/2 in (12.7 mm) |
| Base Width | 1 1/2 in (38.1 mm) |
| Thickness | 1/8 in (3.175 mm) |
| Proof Stress | 170 Min MPa |
| Tensile Strength | 215 Min MPa |
| Shear Strength | 150 MPa |
| Elongation | 10 Min % |
| Density | 2.70 g/cm³ |
| Melting Point | 655 °C |
| Thermal Expansion | 23.5 x10^-6 /K |
| Modulus of Elasticity | 69.5 GPa |
| Thermal Conductivity | 201 W/m.K |
| Electrical Resistivity | 0.033 x10^-6 Ω .m |
| Machinability | Good |
| Workability - Cold | Average |
| Weldability - Gas | Good |
| Weldability - Arc | Very good |
| Weldability - Resistance | Good |
| Brazeability | Very good |
METAL HOW YOU WANT IT
Our custom cutting services ensure you get the size you need at the highest quality. With ongoing investment into our plant and machinery combined with regular maintenance and calibration, we aim for consistency and exceptional results. We offer a range of services using the right equipment and skilled metal workers.
Bar Cutting - We specialise in short lead times and high volume production. To achieve this we use a range of CNC controlled twin pillar type bar saws, cutting to a maximum diameter of 12". We also have the facility to cut tubes and sections (Close tolerances available upon request).
Sheet Guillotining - High capacity hydraulic shearing to close tolerances. Maximum thickness 6mm for aluminium products. A temporary plastic coating will be applied to all of our sheet products prior to cutting, to ensure a scratch-free, clean surface. This coating is easy to peel off once you're ready to put the material in place.
Plate Sawing - Blanks cut to customer requirements on a +2mm/ -0mm tolerance. High volume production capabilities and short lead times are available. Currently we offer up to 4" (101.6mm) in thickness, with a maximum length 2500mm. Please note we stock all common commercial grades and speciality cast tooling plate. Any requirements outside of our standard offering, please feel free to email our sales team.
