Description
| SKU | SS_ST_304_40x1.5/1000mm |
|---|---|
| Grade | 304 / 1.4301 |
| Weight - Kg/m | 1.83 |
| Measurement Type | Metric |

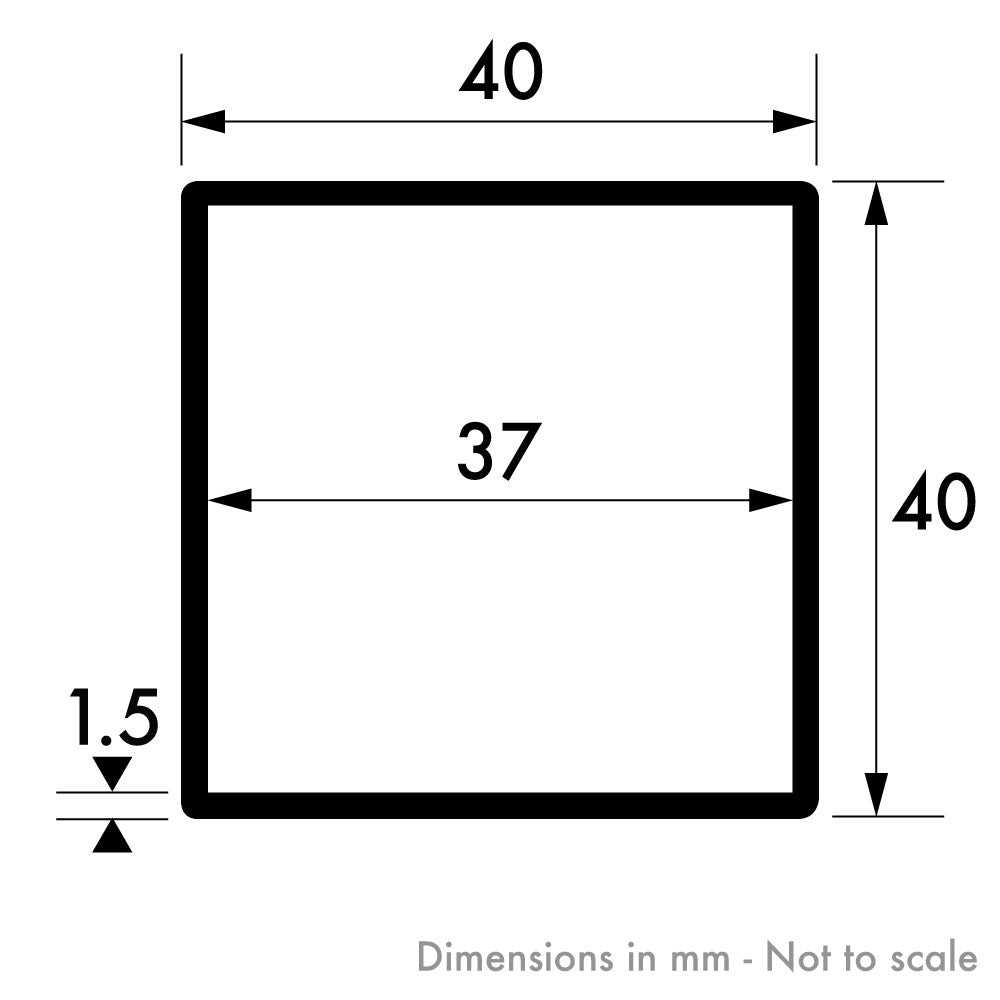

| Size | 40 mm x 40 mm x 1.5 mm |
| Internal Dimension | 37 mm x 37 mm |
| Wall Thickness | 1.5 mm |
| Finish | Dull Polished |
| Proof Stress | 190 Min MPa |
| Tensile Strength | 500 to 700 MPa |
| Shear Strength | 400 to 690 MPa |
| Elongation | 45 Min % |
| Density | 8.00 g/cm³ |
| Melting Point | 1450 °C |
| Thermal Expansion | 17.2 x10^-6 /K |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.2 W/m.K |
| Electrical Resistivity | 0.072 x10^-6 Ω .m |
| Machinability | Good |
| Workability - Cold | Good |
| Weldability - Gas | Good |
| Weldability - Arc | Very good |
| Weldability - Resistance | Good |
| Brazeability | Good |
